How to customize the dashboard of HR?

How to customize the dashboard of HR?

Navigation:

Dashboard

·        Here, with the addition of widgets, HR can observe and monitor the attendance data, shift, shift group change, on-duty, late-in, early-out, etc., of the employees.

·        The added widgets can exhibit the employee’s data in the total count view and analytic view, i.e., the graphical view.

Addition of widgets through count data.

·        Count data gives the summary of the respective created widget.

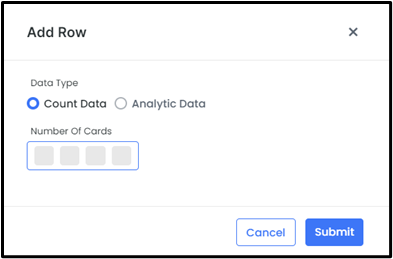

·          For count data, select the number of cards as 4.

·        The process of addition of widgets is shown below.



Time & attendance>>Dashboard>>Widget>>Count data>> +Add New Widget.



Field Name

Example

Description

Select widget.

Lesshours worked.

By drop-down, select the widget to view the data.

Select Department

Marketing

From the drop-down, select the respective department.

Select Period

Current day

To view the data of the period.



Addition of widget through Analytic Data

·          Analytic data summarizes the created widget in a listed or graphical view.

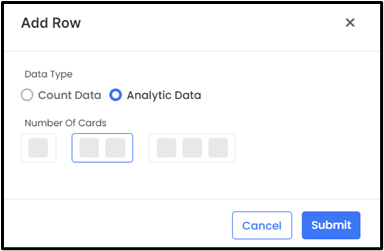

·        For analytic data, select the number of cards as 1 or 2, or 3.

·        The process follows to add widgets in analytic data is as follows.





Time & attendance>>Dashboard>> Add Widget >>Analytic Data>>+Add New Widget.



Field Name

Example

Description

Select Analytics Data

List/Graph

From the drop-down, select either list/graph format to view the widget’s data.

Select Analytics Graph

PieChart/Bar Chart/Line Chart

Based on the selected graph type, the data exhibited.

This option is enabled if analytics data is Graph.

Select Department

Marketing

From the drop-down, select the respective department.

Select Period

Current day/current week/current month/last 5 months.

To view the data of the period.



Update/delete the Widget.

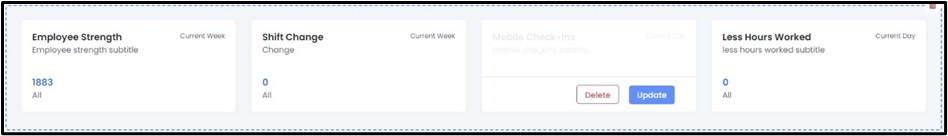

After adding the widget to the HR interface, we can update/delete the widget as follows.

Time & Attendance >> Dashboard >> Update.
